Food Waste Disposer, Organic Waste Composter, Biogas Plant

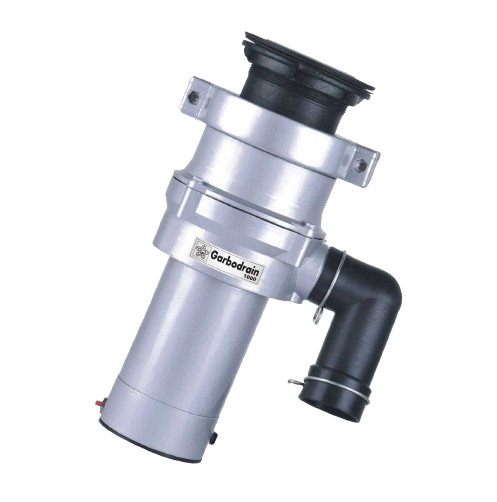

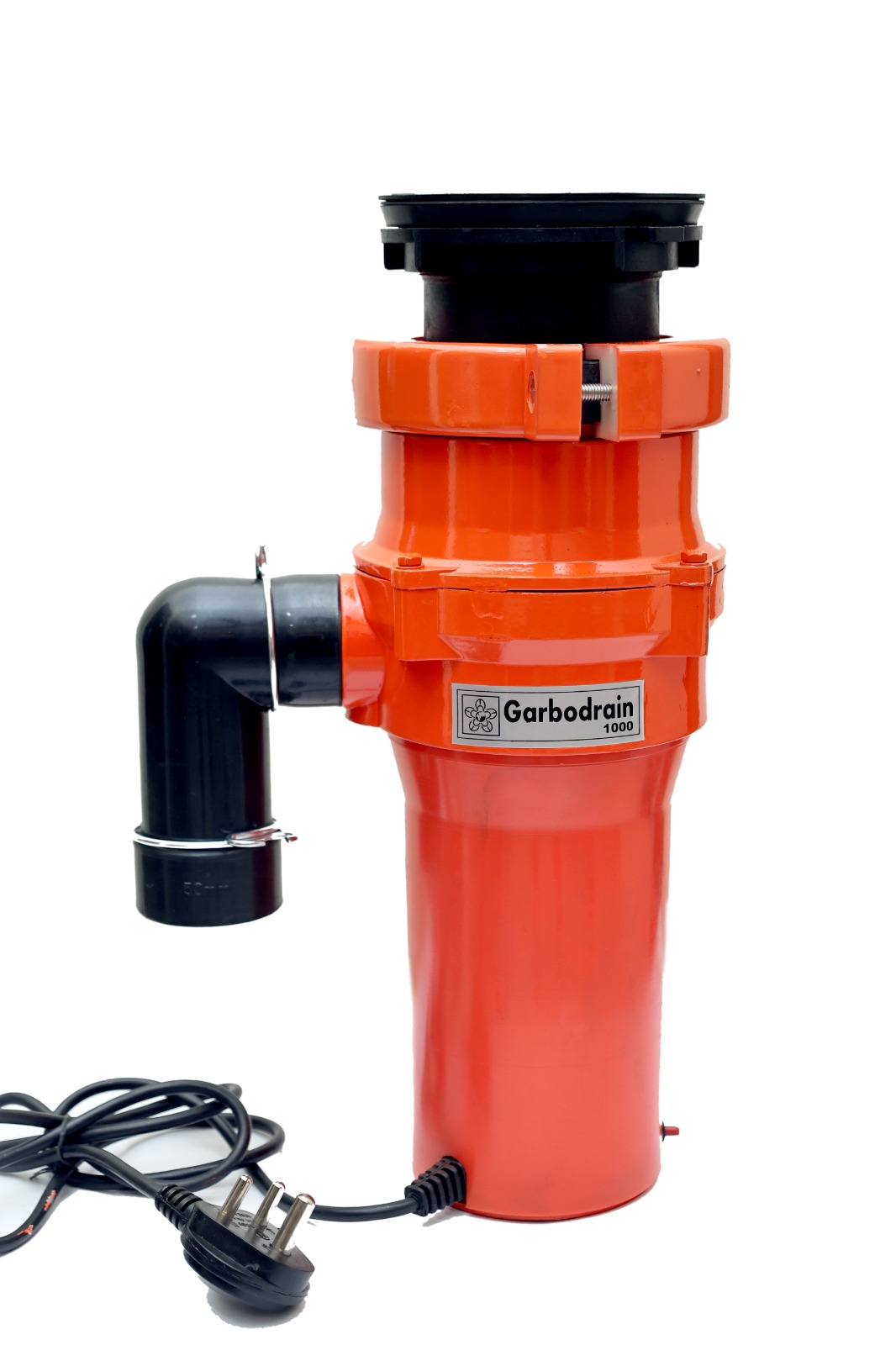

Garbodrain - 1000

G-1000 - Domestic Model
Useful For Houses, Flats & Small Offices

  • Over All Size: Dia 150 X 325mm
  • Sink Mounting : 90mm
  • Out Let : 1.5" BSP at 160mm from top
  • Weight : 4.5 Kg
  • Motor : 1/2 hp, 2300rpm, 240V 15 mm. duty.

Operation

Attach to the sink & connect outlet to the drain.
Connect the disposer cord to a 5A 3pin socket only.

The disposer is ready to use

Turn on the switch & open the tap
Feed in the wastes like Bones, Egg shells,
Vegetable & Fruit peels, Left over Food etc.
The wastes get crushed and goes down the drain
Specially designed mounting arrangement is sturdy &
leak proof even after years of usage.

PMDC motor to provide maximum torque & compactness. Over load protector (manual reset type) for motor safety.
Grinding ring & turn table with anti-jam impellers made of SS 304 for efficient grinding & corrosion free performance.
Main Housing, Mounting assembly & Electrical housing made of Glass. filled Nylon for durability & corrosion FREE performance.

Electricals

A 5A 3pin socket below the sink & a switch to operate the same above the sink to be provided

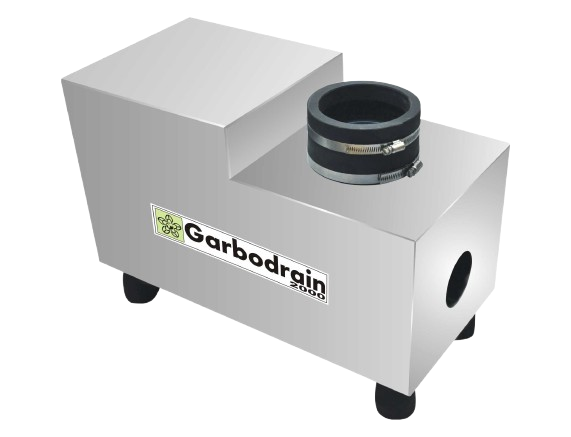

Garbodrain - 2000

G-2000 - Commercial Model without Sink
Disposer To Be Attached To Wash Area Sink Useful For Hotels & Canteens, Ships, Oil Rigs Etc

  • Over all size (lxbxh) : 530x260x380mm
  • Sink mounting Dia : 125mm I 110mm PVC pipe
  • Out let : 1.5” BSP at 165mm from ground level
  • Weight : 65Kg
  • Motor (440V. 50hz, 2800rpm Continuous duty.) : lhp, 2hp, 3hp
  • Disposal capacity (Kg/Hour) : 50kg 150kg 250kg

Note: 1hp Model May Be Offered With High Torque Single Phase Motor

Operation

Attach to the sink & connect outlet to the drain.
Connect the disposer cable to 440V supply through starter.

The disposer is ready to use

Turn on the switch & open the tap
Feed in the wastes like Bones, Egg shells, Vegetable & Fruit peels,
Left over Food etc.
The wastes get crushed and goes down the drain

Outer body is made of FRP for corrosion free life. Grinding ring is SS 304 & machined for longer life & better grinding. As the disposer is capable of grinding wastes on both the directions the life of the crusher is double Unlike imported crushers, the motor is not directly coupled eliminating the chances of motor failure due to water seepage through crusher sealing.

Electricals

440V supply with suitable 3ph starter (1/2/3hp)

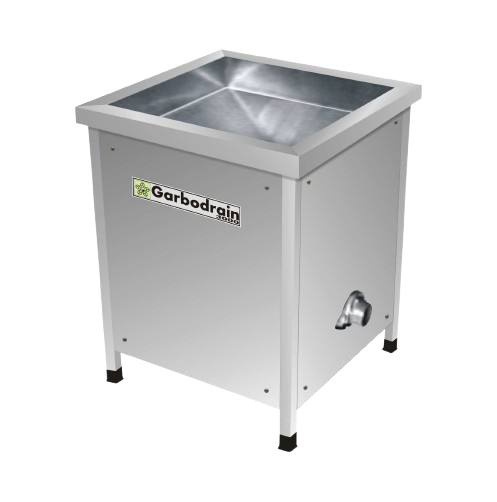

Garbodrain - 3000

G-3000 - A Self Contained Commercial Model
With SS Sink And Can Be Used Independently. Useful For Hotels, Canteens, Ships, Oil Rigs Etc

  • Over All Size (lxbxh) : 595x595x750mm
  • Sink Size : 500x500x280mm
  • Out Let / In Let : 1.5" Nipple / 125mm
  • Weight : 110 Kg
  • Motor (High Torque Three Phase Motor) (440V, 50hz, 2800rpm,Continuous Duty.) 1hp, 2hp, 3hp
  • Disposal Capacity (Kg/Hour): 50 Kg 150 Kg 250 Kg

Operation

Place G-3000 at a convenient place in the kitchen
Connect the disposer cable to 440V supply through starter.

The disposer is ready to use

Turn on the switch & open the tap
Feed in the wastes like Bones, Egg shells,
Vegetable & Fruit peels, Left over Food etc.
The wastes get crushed and goes down the drain

Outer Body and Sink is made of SS 304 for corrosion free life.
Grinding ring is SS 304 & machined for longer life & better grinding.
As the disposer is capable of grinding wastes on both the directions the life of the crusher is double Unlike imported crushers, the motor is not directly coupled eliminating the chances of motor failure due to water seepage through crusher sealing.

Electricals

440V supply with suitable 3ph starter (1/2/3hp)

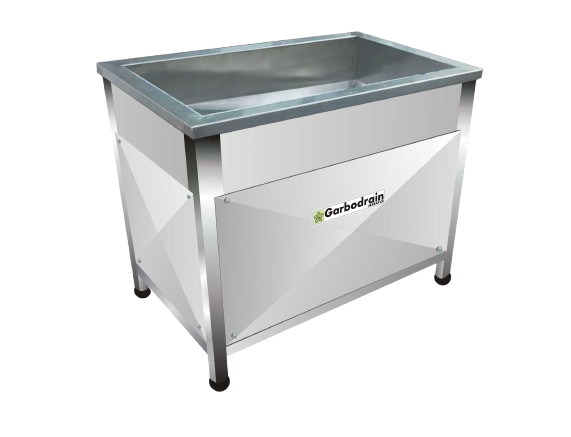

Garbodrain - 4000

G-4000 - A Self Contained Commercial Model
With SS Sink Can Be Used Independently.
Useful For Large Hotel & Industrial Canteens, Ships, Oil Rigs, Marriage Halls Etc., Along With Biogas Plants.

  • Over All Size (lxbxh) : 1050x650x790mm
  • Sink Size : 900x500x200mm
  • Out Let / In Let : 50mm / 150mm
  • Weight : 150 Kg
  • Motor (High Torque Three Phase Motor) (440V, 50hz, 1440rpm,Continuous Duty.) : 3hp, 5hp, 7.5hp
  • Disposal Capacity (Kg/Hour): 250kg 450kg 600kg

Operation

Place G4000 at a convenient place in the kitchen.
Connect the disposer cable to 440V supply through starter.

The disposer is ready to use

Turn on the switch & open the tap
Feed in the wastes like Bones, Egg shells,
Vegetable & Fruit peels, Left over Food etc.
The wastes get crushed and goes down the drain


Very Large Outer Body and Sink made of SS 304 for corrosion free life.
Grinding ring is SS 304 & machined for longer life & better grinding.
As the disposer is capable of grinding wastes on both the directions the life of the crusher is double Unlike imported crushers,
the motor is not directly coupled eliminating the chances of motor failure due to water seepage through crusher sealing.

Electricals

440V supply with suitable 3ph starter

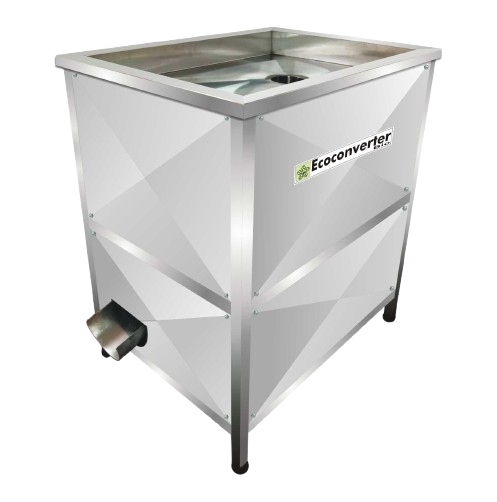

Eco Converter

EC-B is a simple waste crushing and de-watering equipment that converts organic waste into natural organic compost.

  • Over all size (lxbxh) : 1100 x 800x1200mm
  • Sink size : 1000x700x200mm
  • Inlet : 125mm
  • Outlet 50mm
  • Weight 250kg
  • Motor (CRUSHER)(440V,50hz,2800rpm) : 1hp, 2hp, 3hp, 5hp, 7.5hp, 10hp
  • Motor(DE-WATERING)(440V, 50hz,1440rpm Continuous duty) : 2hp, 3hp
  • Disposal Capacity (Kg/Hour): 25kg, 100kg, 200kg, 500kg, 750kg, 1T
  • Curing Crates: 600 X 400 X 320 HDPE Crates.

A COMPACT COMPOSTER TO COMPOST WET GARBAGE

Ecoconverter - B series Composting technology suitable for Housing Complexes,
Markets, Institutions, Industries, Hotels, IT Parks, Municipalities etc.
Unique Technology has been developed to make composting Naturally Easier & Faster Waste From Your green bins Crushed, Washed & Dewatered
After volume reduction waste is fed to Ecobins for manure conversion
In 3 weeks you get highly nutrient Organic Manure ready to be used.

Eco Bin

  • Over all size (lxbxh) : 900x900x900mm
  • Material : Double layer Synthetic Leather
  • Disposal Capacity (Kg/Hour): 300kg per bin

Features

Simple, Economical & Natural Composting process
User friendly & maintenance free operation Power required for just less than a hour for 1T per day
Bio waste processed @ source without creating any environment impact Transport & dumping eliminated
Waste Volume reduced to 60-80%
Models Available - RANGING FROM 25kg TO 2Tons.

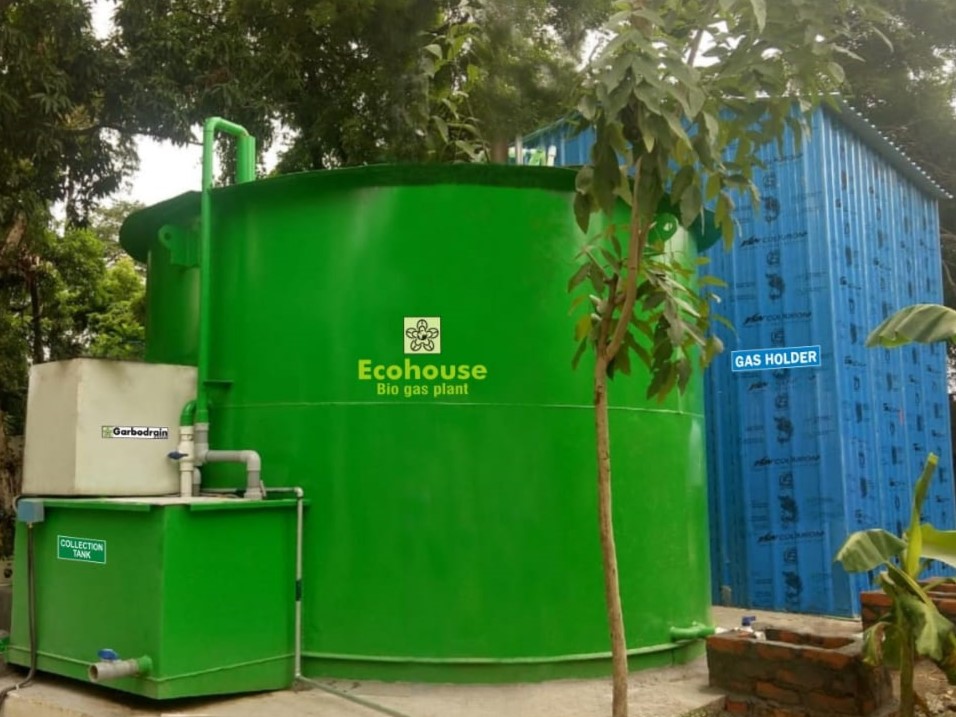

Eco House

Ecohouse Biogas Plants Models available for Houses, Hospitals, Hotels, Industrial Canteens, College canteens, Marriage Halls ADVANTAGES

  • Indigenously developed with in-house R & D over the years. Proven product with multiple commercial units across India.
  • Our plant does not require large quantity of fresh waste for operations. Plant is designed to recycle from the digester using SOLID-LIQUID separator.
  • No need to remove the sludge periodically.
  • Our pre-assembled plants are ready to use-plug and play model.
  • Does not require any major civil work to install the plant and our plant can be relocated very easily if required.(portable)
  • Higher gas generation using proprietary UDOW technology. (7-8% of Food waste / Day)
  • No foul smell and does not attract birds and insects.
  • Easy maintenance and can be operated by a single person.
  • Our plant helps in reducing Green House Gases.
  • Advanced plant health monitoring system using app.
  • Depreciation benefit available- 80% under Income Tax Act in the Year of installation of biogas plant.

Ecohouse is an ON SITE waste handling solution to convert Waste to Energy. Ecohouse is preassembled ready to use plug & Play plant.

  • Ecohouse consists of Garbodrain with slurry pump, Digester, Gas holder with Booster & Automation, Piping with Valves for Moisture Removal and Biogas stove
  • Garbodrain crushes waste with water (1:1) into slurry & feeds it to the Digester
  • Digester which is filled with bacteria rich liquid is Air tight totally Leak proof Chamber. Anaerobic bacterial digestion takes place in this Digester to convert waste to Biogas
  • Our patented UDOW technology helps in very effective Digestion & Higher yield of Biogas (produces 6-7% of the feed). Also liquid slurry, a very rich organic manure gets released
  • Organic manure can be collected & utilised for plants or A good bacteria rich liquid directed to STP for effective STP functioning
  • Gas through piping pressurised with the help of a booster fed to specially installed Biogas stove for Cooking
  • Simple to operate with very low power consumption our Ecohouse plants are Maintenance FREE
  • Models to suit Houses, Large Kitchens, Restaurants, Industrial & College Canteens etc.
